Roll-Up Vinyl Door – Motorized

vinyl pvc roll up door

OVERVIEW

Powered Vinyl Roll Up Doors offer an economical solution for room separation from temperature loss, dust, and noise control while allowing easy access for foot, cart, and motorized traffic. Each door is custom fit to your opening for a quick install and great fit. Available with remote control or motion sensors for rapid access into and out of work zones, loading docks, and warehouse storage areas.

Fast Quote

An Economical Solution

Inexpensive

Roll up vinyl doors are less expensive than steel doors and are more flexible and faster.

Easy Kit Install

The roll-up vinyl door is easy to install with a few basic tools and a piece of lifting equipment for larger doors.

Break-Away Bars

The bottom bar break-away feature, with automatic reset is a time saver and protects your investment

Quick to Clean

The doors are easy to maintain and clean. Most replacement parts needed are only a day or two away

Easy Installation

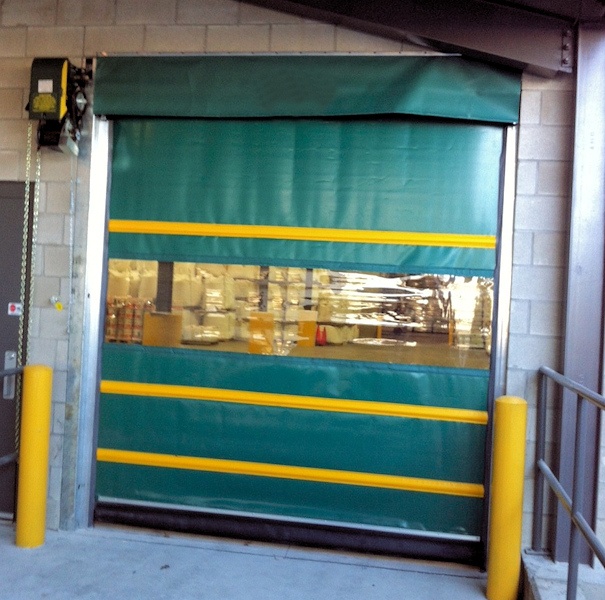

industrial-roll-up-door-vinyl

Vinyl Roll Up Doors

Paylon commercial roll-up doors offer an economical solution for room separation from temperature loss, dust, and noise control while allowing easy access for foot, cart, and motorized traffic. Each door is custom fit to your specific application and since it is motorized traffic moves quickly!

Quick Install

All our industrial vinyl roll-up doors come as a complete kit for field installation, custom made for your application. The doors are easy to install and are designed to give you many years of trouble-free operation. The industrial plastic roll-up doors can be either header or face of wall mounted and come with all the necessary parts for a complete installation.

Operation Type

Roll-up vinyl doors are constructed with high-grade materials with few moving parts. This will ensure easy installation and provide many years of trouble-free service. All main components are easy to replace. Depending on your application, we offer 2 types of manual roll-up vinyl doors (Spring-loaded and chain hoist).

  • Motorized – In-tube (Sizes up to 16′ x 16′)
  • Motorized – Jack-shaft (Sizes up to 20′ x 20′)
  • Larger Sizes - Upon request
Mounting Options

Mounting Options

There are three mounting options available depending on your needs:

  • In-Jamb Mount - Mounted In The Opening
  • Wall Mount - Mounted Over The Opening
  • Stand-off Mount - Mounted Over Existing Door

Rapid Access With Ease

Used In Many Applications

Versatile Mounts

Door Construction – Doors are constructed from double-coated tear-resistant vinyl coated nylon. Standard feature includes break away wind bars with automatic reset, replaceable aluminum track and a full-width PVC viewing window.

Track System – Deep wall aluminum track with automatic reset system built into each door as standard equipment. Depending on door size 2″, 4″ and 6″ track channel is used.

Manual Roll Up Door Applications

Motorized industrial vinyl roll-up doors are perfect inside and out in the following types of plants, and many more.

  • Food Processing Facilities
  • Pharmaceutical Facilities
  • General Manufacturing
  • Greenhouse Growers
  • Warehouse Storage

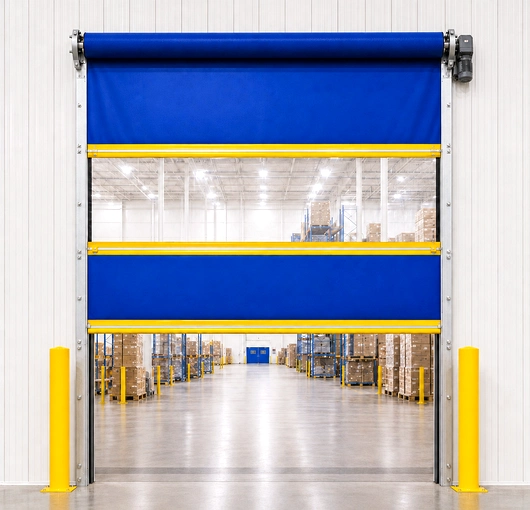

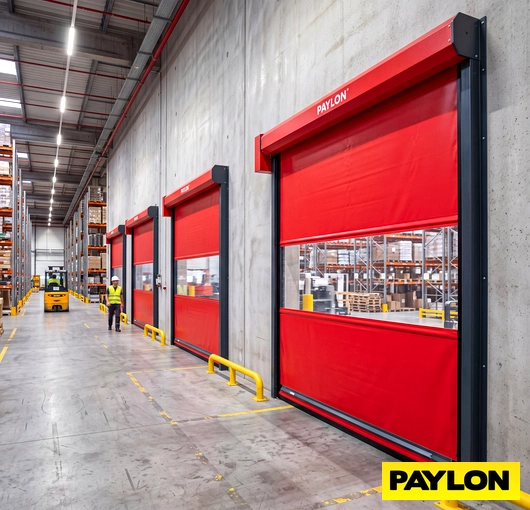

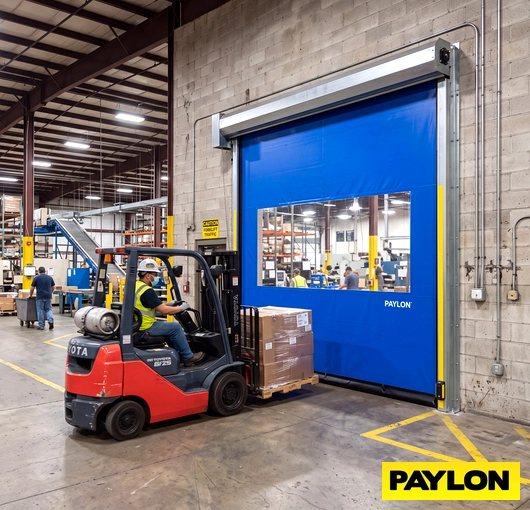

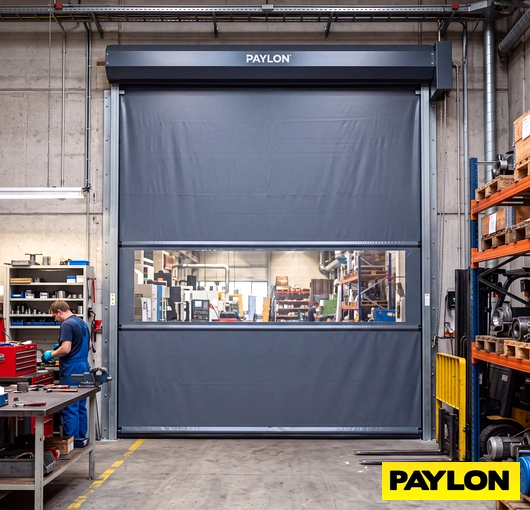

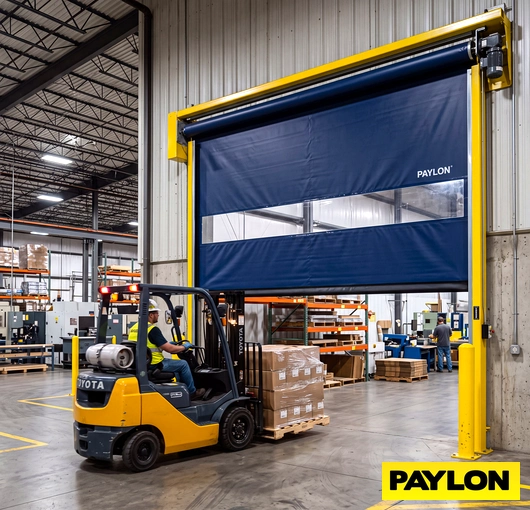

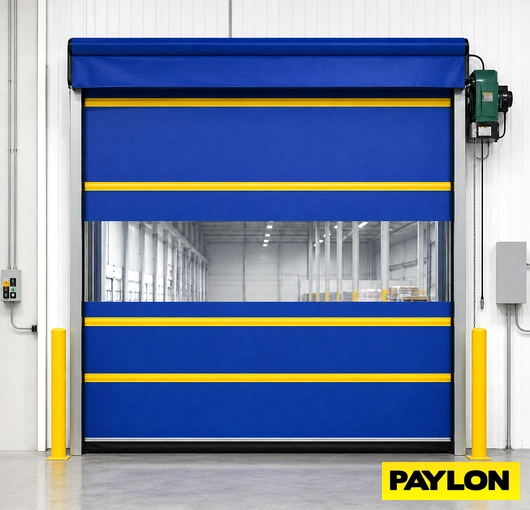

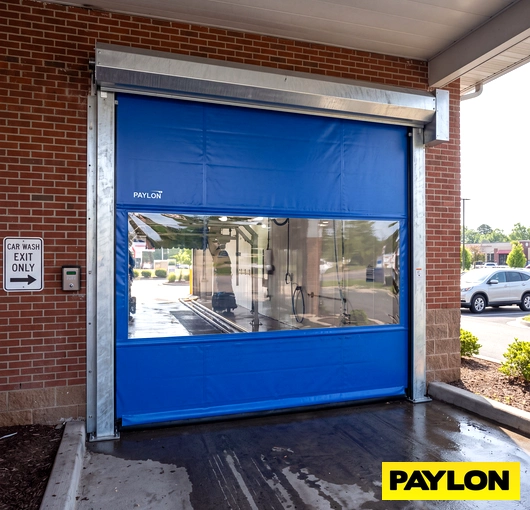

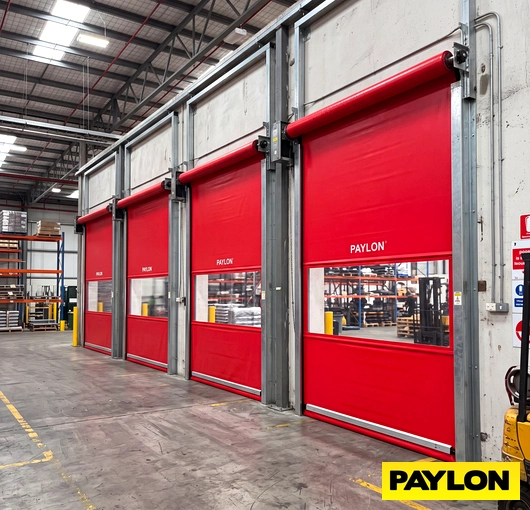

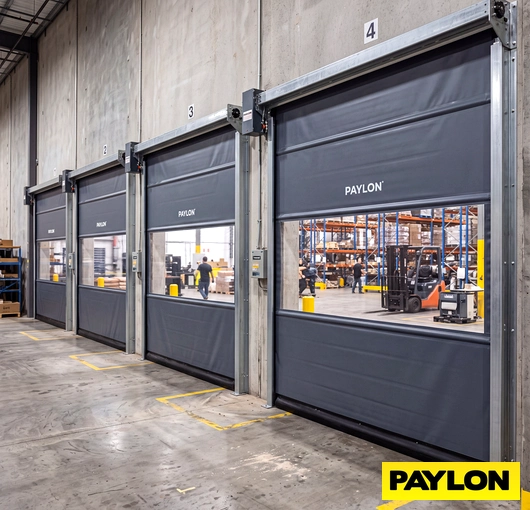

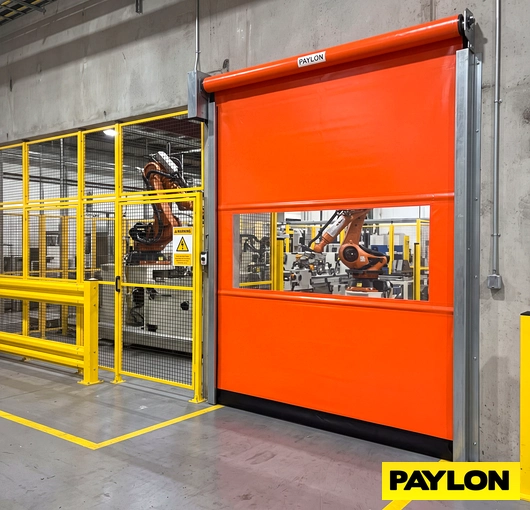

Photo Gallery

manual roll up curtain door
vinyl roll up curtain door
Roll-Up Vinyl Door - Manual
plastic roll up door
loading dock roll up door pvc plastic

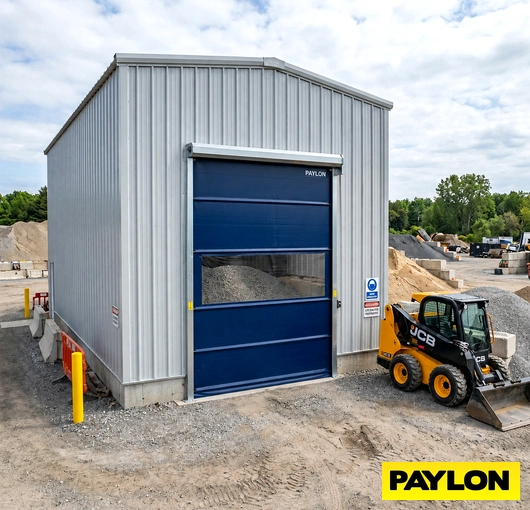

outdoor pvc vinyl roll up doors
pvc roll up doors
warehouse roll up door vinyl
Features Material Spec Sheet FAQ
Features

Key Features

Vinyl Roll Up Doors are custom manufactured to size and feature durable 22 or 40-ounce vinyl, along with a bottom bar foam core cushion that ensures a positive floor contact seal when you have uneven floors.

  • Breakaway feature utilizing flexible fiberglass wind bars
  • Maximum Size: 25’W x 20’H (With 3 Motor Options)
  • Standard 22 ounce vinyl, optional 40-ounce upgrade available (On certain sizes)
  • Standard full-width vision panel ensures good visibility for faster traffic
  • 1/4Hp in-tube motor, 4-Amp, single-phase, 120V, (12 in./sec. Raise Speed)
  • 1/2Hp Jackshaft Motor, 8-Amp, single-phase 120V, (20 in./sec. Raise Speed)
  • 1.0Hp Jackshaft Motor, 10-Amp, single-phase 120V, (20 in./sec. Raise Speed)
  • Built-in automatic reset system is a standard feature on all motorized bug doors
  • Flexible fiberglass wind bars or aluminum hinge option available for high wind areas
  • Snaptite aluminum tracks available in 2”, 4”, and 6” depths allow for easy replacement
  • Available in 4 mounting styles: Header Mount, Wall Mount, E-Track, and Stand-Off Mount
  • One year limited warranty on parts and workmanship.

Options

  • Motion sensors for automatic opening and closing
  • Remote controls allowing door operation from a distance
  • Pull-Cord operators, allowing door operation from fork trucks
  • NEMA 4 controls, allowing protection from rain, dust, or moisture
  • You can upgrade to a 34" Per/Sec motor for small to medium size doors
Material

STANDARD | 22 OZ Vinyl
A lasting, lightweight, mildew resistant PVC coated polyester

  • Tear Strength: 140 x 150 lbs./1”
  • Standard Colors: Forest Green, Blue, Black, Yellow (There is an up charge for non standard colors).
  • Cold Crack: -30° F
  • Adhesion: 22 lbs./2”

PREMIUM | 40 OZ Vinyl
A durable, high quality, mildew resistant PVC coated polyester designed to hold up to long term stress

  • Tear Strength: 308 x 283 lbs./1”
  • Standard Colors: Forest Green, Blue, Black, Yellow (There is an up charge for non standard colors).
  • Cold Crack: -40° F
  • Adhesion: 31 lbs./2”

Color Options For Roll Up Doors

Spec Sheet

Specification Sheets

FAQ

Common Questions

How hard are the roll up doors to install?
Roll up doors are very easy to install and require only basic tools.



How fast can motorized vinyl roll up doors open?
Travel speeds can range from 12”/Sec to 100”/Sec



What is the advantage of a flexible roll up door?
Flexible roll up doors are designed for a high cycle life and can withstand light impact without damage



Can I get a viewing window in a vinyl roll up door?
Yes, most vinyl roll up doors come standard with viewing windows



What sizes are available for vinyl roll up doors?
Doors can be manufactured in sizes as small as 3’ x 4’ up to sizes of 30’ x 30’ and larger.



What is the largest size you offer for a manual roll up vinyl door?
Manual chain hoist door sizes are available up to 16’ x 16’



How much headroom is typically needed for a vinyl roll up door?
Headroom required will range from 6" up to 18” depending on the door



How do I clean a vinyl roll up door?
To clean, use a non-abrasive soap & water (Power washer is not recommended)



What are some applications for roll-up vinyl doors?
For low use applications, this would be an alternative to a high-speed door that is used to control dust, humidity, temperature, or flying debris, birds, and insects



How long does it take to install a vinyl roll up door?
Depending on your experience level and the size of the door, time can range between 3 to 10 hours



Can I get a clear roll up door?
Because PVC material does not roll-up well, only about 1/3 of the door can be a window



Can a flexible roll up door be used for security?
Although the door may work to secure an area from employees, it is not adequate protection against vandals. Most flexible door materials can be cut with a sharp knife.



What is a stand-off Mount for a roll up vinyl door?
The stand-off Mount allows you to clear an existing door. (usually a metal roll up or panel door)
