Home / Roll-Up Bug Door / Roll-Up Bug Door – Motorized

Roll-Up Bug Door – Motorized

warehouse roll up door screen powered

OVERVIEW

Motorized Mesh Screen Roll Up Doors offer an economical solution for blocking birds and/or bugs while maintaining maximum air flow for ventilation. Powered Roll up Bug Screen Doors can work in conjunction with your existing steel doors. The door is operated using a motor inside of the roller tube at 4 amps, single phase, and 120V. With a push of a button the door opens and closes for complete access to your dock door opening.

Fast Quote

An Economical Solution

Inexpensive

Powered roll-up bug doors are less expensive than steel roll up doors and allow ventilation.

Easy Kit Install

The roll-up screen is easy to install with a few basic tools and a piece of lifting equipment for larger doors.

Break-Away Bars

The bottom bar break-away feature, with automatic reset is a time saver and protects your investment

Quick to Clean

The screen doors are easy to maintain and clean. Most parts needed are stocked.

Easy Installation

warehouse bug screen mesh doors

Bug Screen Roll-up Doors

Paylon commercial roll up doors offer an economical solution for keeping bugs, birds and other insects out of your warehouse and other manufacturing areas. All while allowing easy access for foot, cart and motorized traffic. Each door is custom fit to your specific opening.



Quick Install

All our commercial bug screen doors come as a complete kit, custom made for your application. The doors are easy to install and are designed to give many years trouble free operation. The commercial bug screen doors can be either header or face of wall mounted and come with all the necessary parts for a complete installation.



Operation Type

Roll up bug mesh doors are constructed with high-grade materials with few moving parts. This will ensure easy installation and provide many years of trouble-free service. All main components are easy to replace. Depending on your application, we offer 2 types of manual roll-up vinyl doors (Spring loaded and chain hoist).

  • Motorized – In-tube (Sizes up to 16′ x 16′)
  • Motorized – Jack-shaft (Sizes up to 20′ x 20′)
  • Larger sizes - Upon request
Mounting Options

Mounting Options

There are three mounting options available depending on your needs:

  • In-Jamb Mount - Mounted In The Opening
  • Wall Mount - Mounted Over The Opening
  • Stand-off Mount - Mounted Over Existing Door

Keep Out Birds and Bugs

industrial mesh screen doors

Bird/Bug Doors

Paylon screen mesh doors offer an economical solution for blocking birds and/or bugs while maintaining maximum air flow for ventilation. Roll up Bug Screen Doors can work in conjunction with your existing steel doors. Other versions available already retractable side to side bug screen curtain ideal for very low traffic and also a manually operated roll up bug screen door.

Benefits

Roll up bird doors or roll up bug doors are designed to give maximum air-flow ventilation (which reduces cooling costs) while giving maximum protection against flying insects, birds, rodents, or flying debris. Depending on your application we offer 2 types of electric doors (Standard duty or high cycle).

warehouse bug screen mesh door

Also Known As

  • Automatic bird screen doors
  • Automatic bug screen doors
  • Motorized bird screen doors
  • Motorized bug screen doors

Great For Ventalation

Roll up bird doors or roll up bug doors are designed to give maximum air-flow ventilation (which reduces cooling costs) while giving maximum protection against flying insects, birds, rodents, or flying debris. Depending on your application we offer 2 types of manual bug doors (Spring loaded or chain hoist).

Used In Many Applications

Versatile Mounts

Door Construction – Doors are constructed from high strength vinyl coated polyester screen 10oz. Standard feature includes breakaway crossbars and 3-piece replaceable guide track.

Track System – Deep wall aluminum track with automatic reset system built into each door as standard equipment. Depending on door size 2″, 4″ and 6″ track channel are used.

Manual Roll Up Door Applications

Industrial bug screen roll-up doors are perfect inside and out in the following types of plants, and many more.

  • Food Processing Facilities
  • Pharmaceutical Facilities
  • General Manufacturing
  • Greenhouse Growers
  • Warehouse Storage

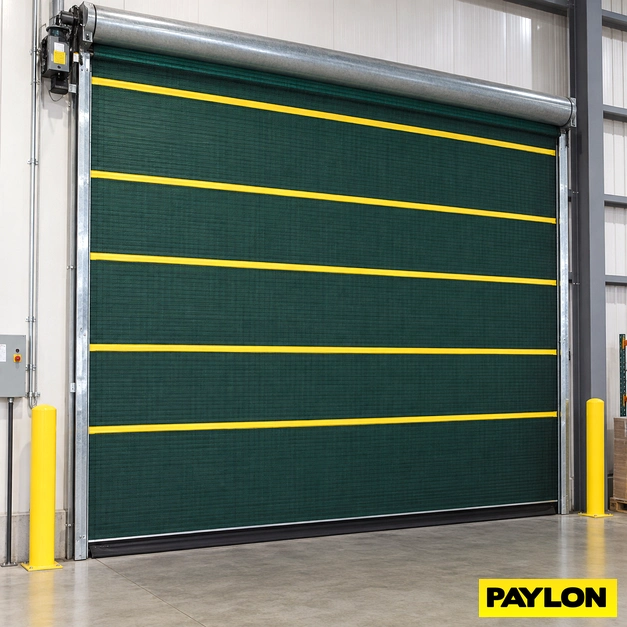

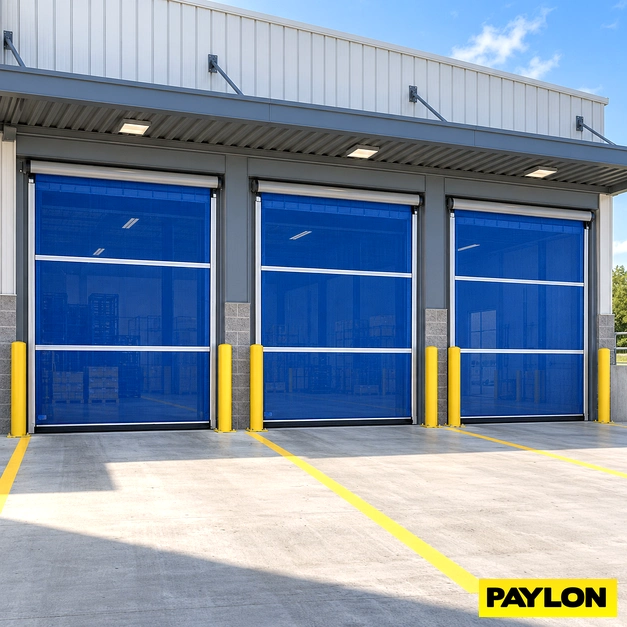

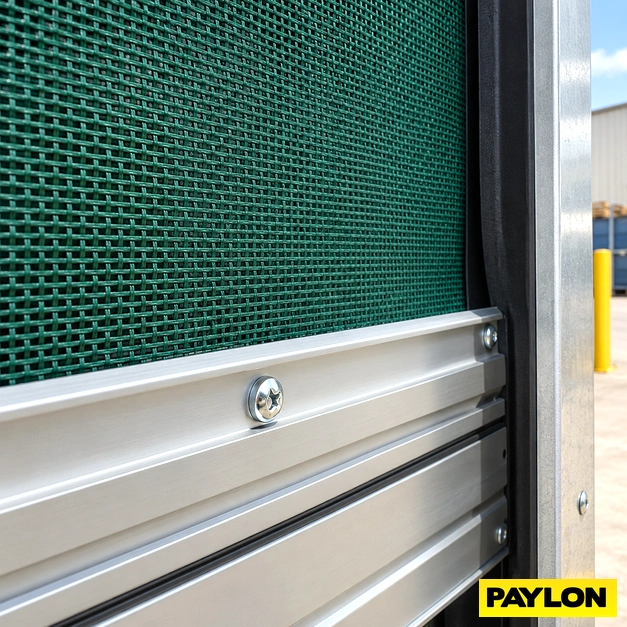

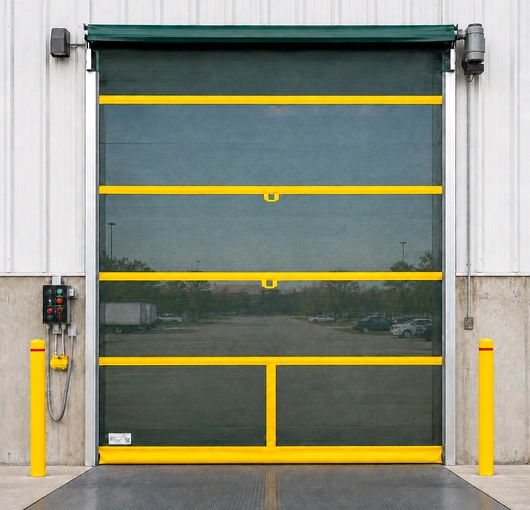

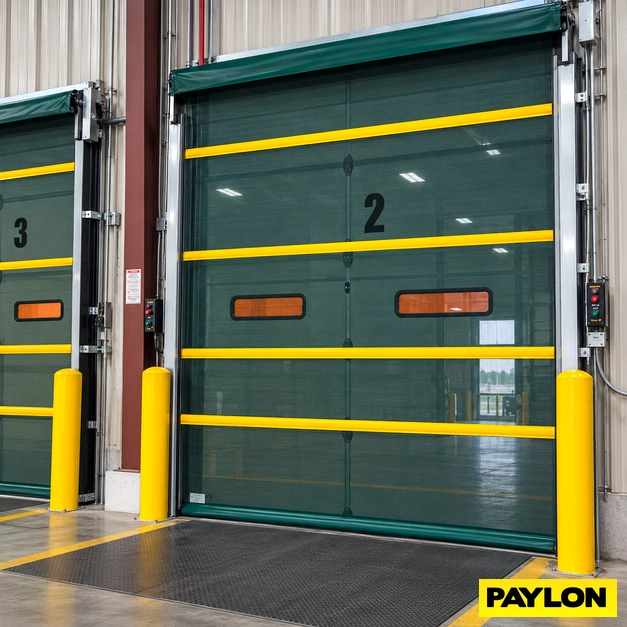

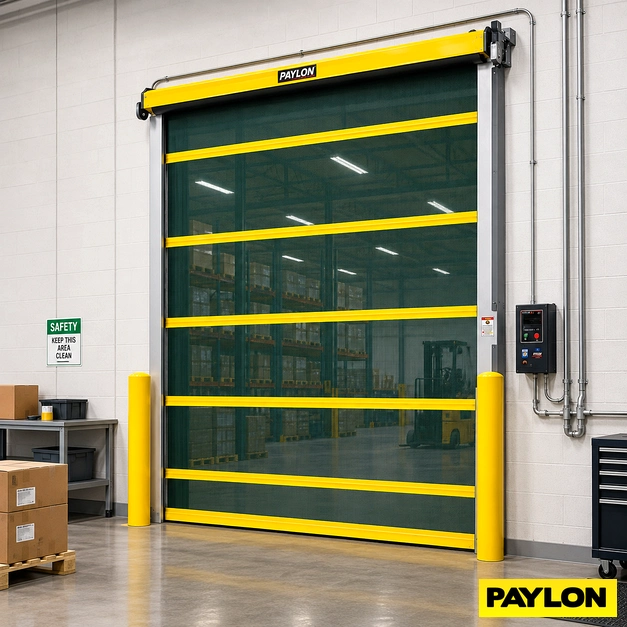

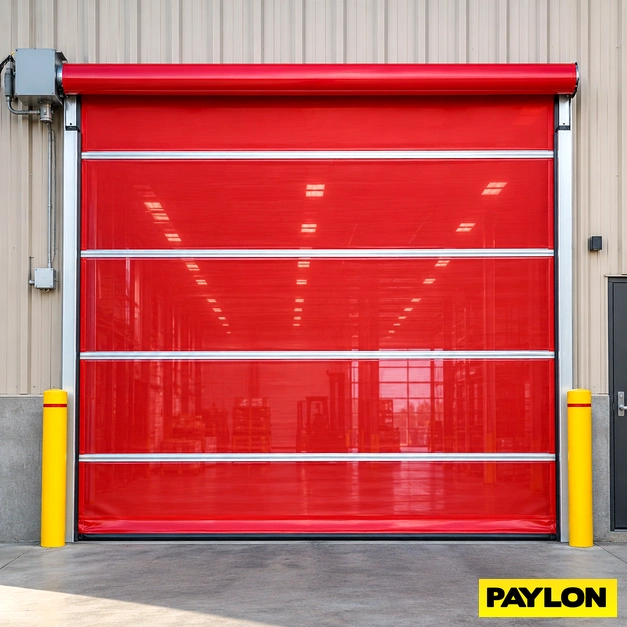

Photo Gallery

bug screen mesh doors for industrial
loading bay mesh screen doors
Manual roll up bird screen door
warehouse bug screen mesh doors
warehouse roll up door screen for bugs
dock door screens for warehouses
Features Material Spec Sheet FAQ
Features

Key Features

Bug Screen Roll Up Doors are custom manufactured to size and features an industrial-grade bug mesh vinyl along with a bottom bar foam core cushion that ensures a positive floor contact seal when you have uneven floors.

  • Maximum Size: 25’W x 20’H (With 3 Motor Options)
  • 1/4Hp in-tube motor, 4-Amp, single-phase, 120V, (12 in./sec. Raise Speed)
  • 1/2Hp Jackshaft Motor, 8-Amp, single-phase 120V, (20 in./sec. Raise Speed)
  • 1.0Hp Jackshaft Motor, 10-Amp, single-phase 120V, (20 in./sec. Raise Speed)
  • Built-in automatic reset system is a standard feature on all motorized bug doors
  • Flexible fiberglass wind bars or aluminum hinge option available for high wind areas
  • Snaptite aluminum tracks available in 2”, 4”, and 6” depths allow for easy replacement
  • Available in 4 mounting styles: Header Mount, Wall Mount, E-Track, and Stand-Off Mount
  • One year limited warranty on parts and workmanship.

Optional Features

  • Motion sensors for automatic opening and closing
  • Remote controls allowing door operation from a distance
  • Pull-Cord operators, allowing door operation from fork trucks
  • NEMA 4 controls, allowing protection from rain, dust, or moisture
  • You can upgrade to a 34" Per/Sec motor for small to medium size doors
Material

Bug Screen (Standard)

  • Material: .025” diameter vinyl-coated polyester
  • Weave: Plain Weave, 17 x 11 ends/in2
  • Airflow: 35% Flow, 65% Restriction
  • Standard Colors: Forest Green, Blue, Black, Yellow (There is an up charge for non standard colors).

Bird Screen

  • Material: .025” diameter vinyl-coated polyester
  • Weave: Plain Weave, 12 x 7 ends/in2
  • Colors: Black only
  • Airflow: 75% Flow, 25% Restriction

Gnat Screen

  • Material: .014” diameter vinyl-coated polyester
  • Weave: Plain Weave, 17 x 20 ends/in2
  • Colors: Black only
  • Airflow: 55% Flow, 45% Restriction



bug screen mesh door industrial

Spec Sheet

Specification Sheets

FAQ

Common Questions

How fast can a motorized roll up bug door open?
Travel speeds can range from 12”/Sec to 30”/Sec for motorized bug doors.



What is the advantage of a flexible roll up bug door over a metal door?
Flexible roll up bug doors are designed for a high cycle life and can withstand light impact without causing damage.



Can I get a patch kit for a roll up bug door?
Yes, Patch kits are available for most screen materials



What sizes are available for roll up bug doors?
Doors can be manufactured in sizes as small as 3’ x 4’ up to sizes of 30’ x 30’ and larger.



What is the largest size you offer for a manual roll up bug door?
Manual chain hoist door sizes are available up to 16’ x 16’



How much headroom is typically needed for a roll up bug door?
Headroom required will range from 6" up to 18” depending on the door



How do I clean a roll up bug door?
To clean, use a non-abrasive soap & water (Power washer is not recommended)



What are some applications for roll-up bug doors?
Applications include: Control temperature, flying debris, birds, and insects.



How long does it take to install a roll up bug door?
Depending on your experience level and the size of the door, time can range between 3 to 10 hours



Will bug screen control gnats?
We also offer a gnat screen, but it will greatly reduce airflow Compared to bug screen



Can a flexible roll up bug door be used for security?
Although the door may work to secure an area from employees, it is not adequate protection against vandals. Most Bird, bug, and gnat screens door can be easily cut with a sharp knife.



What is a stand-off Mount for a roll up bug door?
The stand-off Mount allows you to clear an existing door, thus allowing use of both doors.
