Roll-Up Vinyl Door – Manual

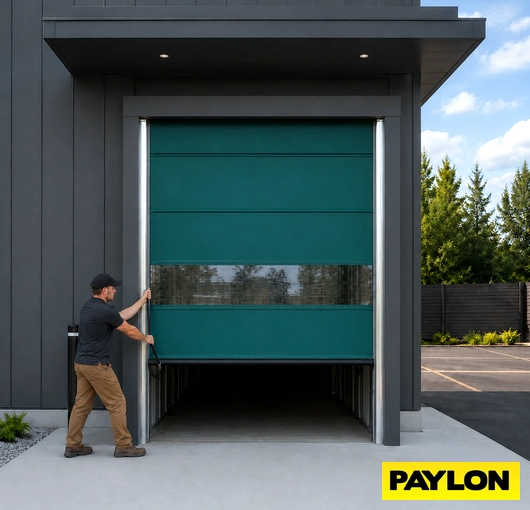

Manual operated roll up door

OVERVIEW

Manual Vinyl Roll Up Doors are operated by a heavy duty spring loaded roll tube. Pull down handles are provided for easy opening and closing. Manual vinyl doors are supplied with a locking pin and grommet or locking plate for holding door in place. A spring assisted Chain Hoist option is available for larger doors. Friction brake is supplied at 13’ and higher on chain hoist models.

Fast Quote

An Economical Solution

Inexpensive

Manual roll-up vinyl doors are less expensive than motorized yet still provide the same high-quality door.

Easy Kit Install

The roll-up vinyl door is easy to install with a few basic tools and a piece of lifting equipment for larger doors.

Break-Away Bars

The bottom bar break-away feature, with automatic reset is a time saver and protects your investment

Quick to Clean

The doors are easy to maintain and clean. Most replacement parts needed are only a day or two away

Easy Installation

industrial roll up door curtain

Vinyl Roll-up Doors

Paylon commercial roll up doors offer an economical solution For room separation From temperature loss, dust and noise control while allowing easy access for foot, cart and motorized traffic. Each door is custom fit to your specific application.

Quick Install

All our commercial vinyl roll-up doors come as a complete kit, custom made for your application. The doors are easy to install and are designed to give many years of trouble-free operation. The commercial vinyl roll up doors can be either header or face of wall mounted and come with all the necessary parts for a complete installation.

Operation Type

Roll up vinyl doors are constructed with high-grade materials with few moving parts. This will ensure easy installation and provide many years of trouble-free service. All main components are easy to replace. Depending on your application, we offer 2 types of manual roll-up vinyl doors (Spring loaded and chain hoist).

  • Manual, Spring Loaded  (Sizes up to 12′ x 12′)
  • Manual, Chain Hoist (Sizes up to 16′ x 16′)
Mounting Options

Mounting Options

There are three mounting options available depending on your needs:

  • In-Jamb Mount - Mounted In The Opening
  • Wall Mount - Mounted Over The Opening
  • Stand-off Mount - Mounted Over Existing Door

Used In Many Applications

Versatile Mounts

Door Construction – Doors are constructed from double-coated tear-resistant vinyl coated nylon. Standard feature includes break away wind bars with automatic reset, replaceable aluminum track and a full-width PVC viewing window.

Track System – Deep wall aluminum track with automatic reset system built into each door as standard equipment. Depending on door size 2″, 4″ and 6″ track channel is used.

Manual Roll Up Door Applications

Manual vinyl roll-up doors are perfect inside and out in the following types of plants, and many more.

  • Food Processing Facilities
  • Pharmaceutical Facilities
  • General Manufacturing
  • Greenhouse Growers
  • Warehouse Storage

Photo Gallery

manual roll up curtain door

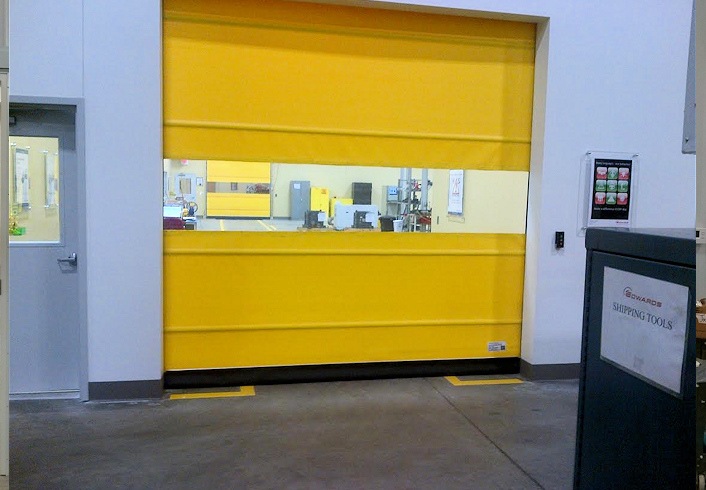

vinyl roll up curtain door

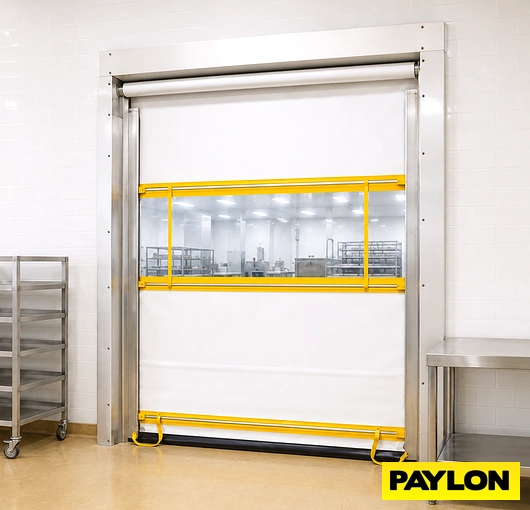

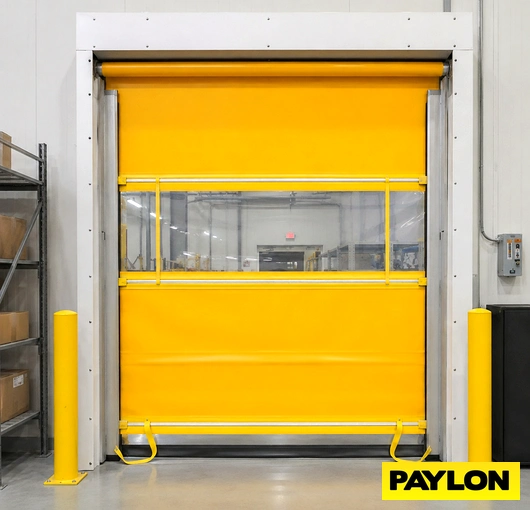

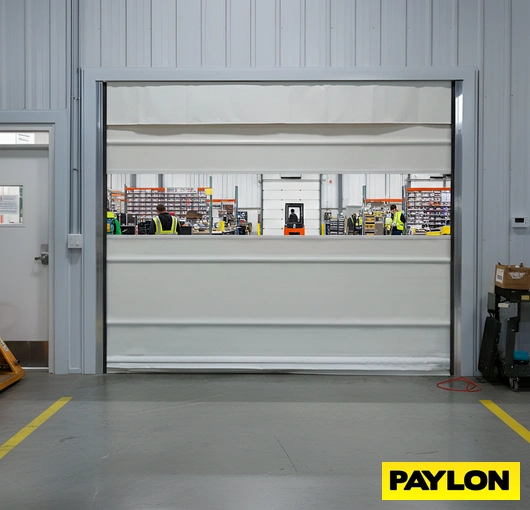

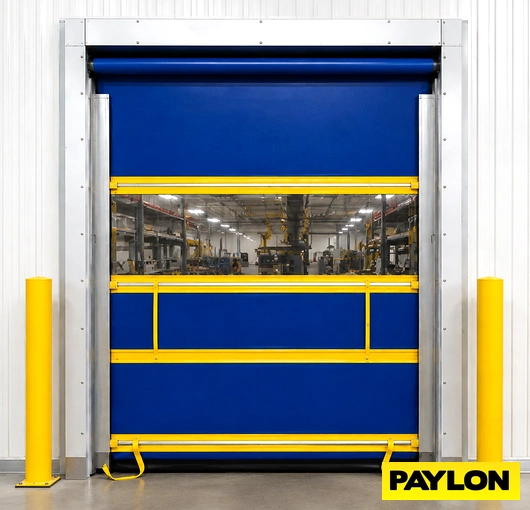

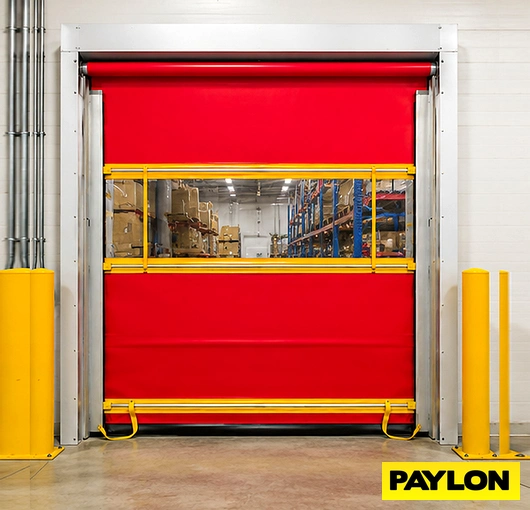

Roll-Up Vinyl Door - Manual
plastic roll up door
Features Material Spec Sheet FAQ
Features

Key Features

Vinyl Roll Up Doors are custom manufactured to size and feature durable 22 or 40-ounce vinyl, along with a bottom bar foam core cushion that ensures a positive floor contact seal when you have uneven floors.

  • Spring Loaded Maximum Size: 11’W x 12’H
  • Chain Hoist Maximum Size:      16’W x 16’H
  • Standard full-length vision panel ensures good visibility for faster traffic
  • Standard 22 ounce vinyl, optional 40-ounce upgrade available (On certain sizes)
  • Built-in automatic reset system is a standard feature on all vinyl roll-up doors
  • Breakaway feature utilizing flexible fiberglass wind bars that are maintenance-free
  • Snaptite aluminum tracks available in 2”, 4”, and 6” depths allow for easy replacement
  • Chain hoist model features sealed bearing in the mounting plate to assist rotation
  • One year limited warranty on parts and workmanship

Mechanism

  • Spring Loaded - An internal spring makes raising and lowering the roll-up door curtain very easy.
  • (The counter-balance spring is a standard feature on all push/pull systems)
  • Chain Hoist - Using a gear-reduction pull-chain located on the side of the door allows easy operation.
  • (Chain hoist operators are required for all larger manual operated doors)
Material

STANDARD | 22 OZ Vinyl
A lasting, lightweight, mildew resistant PVC coated polyester

  • Tear Strength: 140 x 150 lbs./1”
  • Standard Colors: Forest Green, Blue, Black, Yellow (There is an up charge for non standard colors).
  • Cold Crack: -30° F
  • Adhesion: 22 lbs./2”

PREMIUM | 40 OZ Vinyl
A durable, high quality, mildew resistant PVC coated polyester designed to hold up to long term stress

  • Tear Strength: 308 x 283 lbs./1”
  • Standard Colors: Forest Green, Blue, Black, Yellow (There is an up charge for non standard colors).
  • Cold Crack: -40° F
  • Adhesion: 31 lbs./2”

Color Options For Roll Up Doors

Spec Sheet

Specification Sheets

FAQ

Common Questions

How hard are the roll up doors to install?
Roll up doors are very easy to install and require only basic tools.



How fast can motorized vinyl roll up doors open?
Travel speeds can range from 12”/Sec to 100”/Sec



What is the advantage of a flexible roll up door?
Flexible roll up doors are designed for a high cycle life and can withstand light impact without damage



Can I get a viewing window in a vinyl roll up door?
Yes, most vinyl roll up doors come standard with viewing windows



What sizes are available for vinyl roll up doors?
Doors can be manufactured in sizes as small as 3’ x 4’ up to sizes of 30’ x 30’ and larger.



What is the largest size you offer for a manual roll up vinyl door?
Manual chain hoist door sizes are available up to 16’ x 16’



How much headroom is typically needed for a vinyl roll up door?
Headroom required will range from 6" up to 18” depending on the door



How do I clean a vinyl roll up door?
To clean, use a non-abrasive soap & water (Power washer is not recommended)



What are some applications for roll-up vinyl doors?
For low use applications, this would be an alternative to a high-speed door that is used to control dust, humidity, temperature, or flying debris, birds, and insects



How long does it take to install a vinyl roll up door?
Depending on your experience level and the size of the door, time can range between 3 to 10 hours



Can I get a clear roll up door?
Because PVC material does not roll-up well, only about 1/3 of the door can be a window



Can a flexible roll up door be used for security?
Although the door may work to secure an area from employees, it is not adequate protection against vandals. Most flexible door materials can be cut with a sharp knife.

What is a stand-off Mount for a roll up vinyl door?
The stand-off Mount allows you to clear an existing door. (usually a metal roll up or panel door)
