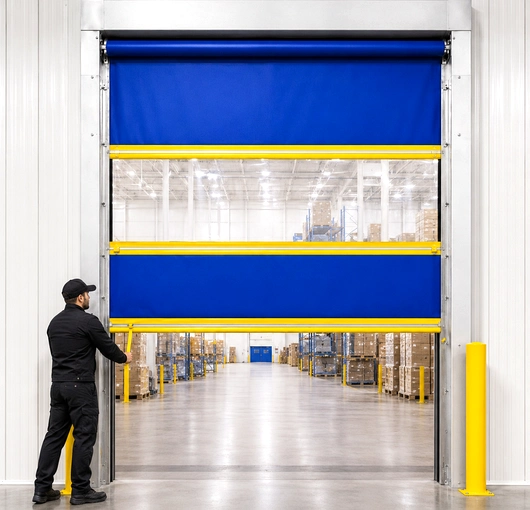

Manual Roll-Up Vinyl Doors
A vinyl roll-up door is the type of door you raise by hand using a spring-loaded push-up or a chain hoist. It does not require a motor or wiring.
- A good option for openings used a few times a day
- Customizable with a chain hoist and up to 16 ft. x 16 ft.
- The typical price ranges between $1,710 and $4,000.
- Comes with a one-year limited warranty

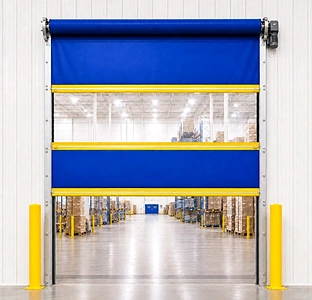

Motorized Roll-Up Vinyl Doors
These push-button vinyl doors are designed with a quiet in-tube motor that opens at about 12 in. per second.
- A good option for openings used several times per hour.
- Designed up to 16 ft. x 16 ft., or 20 ft. x 20 ft. with a jackshaft motor
- The typical price ranges between $2,045 and $4,100.
- Comes with a one-year limited warranty

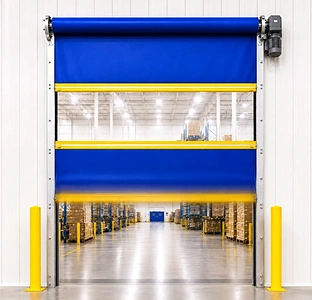

High-Speed Roll-Up Doors
This fast vinyl door opens at 20 to 100 in. per second and closes right behind traffic to retain temperature.
- Perfect choice for busy forklift and cart openings, 100+ cycles a day
- Customizable up to 25 ft. wide x 20 ft. high
- The typical price ranges from $4,347 to $21,093
- Comes with a one-year limited warranty
Manual, Motorized Or High-Speed?
| Manual | Motorized | High-Speed | |
|---|---|---|---|
| Opening speed | By hand | About 12 in./sec. | 20 to 100 in./sec. |
| Best traffic level | A few times a day | Up to about 6 cycles an hour | 100+ cycles a day, up to 500 |
| Largest size | 16 x 16 ft. | 20 x 20 ft. | 25 x 20 ft. |
| Power | None | 120V single-phase | 120V to 480V, single or 3-phase |
| Typical price | $1,710 to $4,000 | $2,045 to $4,100 | $4,347 to $21,093 |
Mounting Options
Header Mount
The track and roll tube fit inside the door frame.
Wall Mount
The door fastens to the wall above and beside the opening.
Stand-Off Or E-Track
The door attaches to the tracks of a steel roll-up door or sits in front of an existing overhead door.
Common Questions
How much does a roll-up door cost?
Our manual door for roll-up vinyl doors at PAYLON is about $1,710. The motorized door prices range from $2,045 to $4,100, while the high-speed doors are in the range of $4,347 to $21,093. The actual price depends on the size, vinyl weight, motor, and controls.
How much does a high speed roll up door cost?
The cost of our high-speed roll-up vinyl doors is around $4,347 to $21,093. The price is mostly determined by size, followed by opening speed, vinyl weight, motor voltage, and options such as motion sensors.
What is a high speed rapid roll door?
A high-speed rapid roll door is a fabric or vinyl door that opens between 20 and 100 in. per second and closes immediately after traffic passes. The short open time holds temperature while keeping dust out. For doors with speed and other available options, explore our high speed roll up doors.
What are the doors that roll up called?
The version of vinyl doors that roll up is called roll-up vinyl doors, fabric roll-up doors, rapid roll doors, or high-speed doors. The metal versions are known as rolling steel doors or steel roll-up doors.
Are roll-up doors worth it?
Yes, roll-up doors are worth it for busy openings in a building. A vinyl roll-up door retains heat or cold, blocks dust and noise, and takes no floor space while traffic is moving through. It is not built for security, so pair it with a steel door if the opening must lock.
How long does it take to get a vinyl roll-up door?
At PAYLON, we ship most of our orders in about 14 to 25 days. You will find the precise delivery date at the top of your quote. We ship each door as a complete kit. There is also a one-year limited warranty on parts and workmanship.
What to Send for a Quote
Provide the following information, and we will give you a quick price for your door:
- The width and height of each opening
- Whether it’s manual, motorized, or high-speed
- How frequently the door opens within an hour
- Whether the door mounts inside the opening, the wall, or an existing door
- A clear photo of the opening and the space above it
