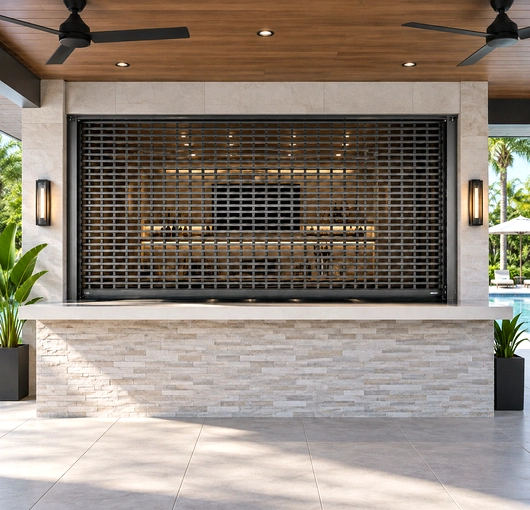

Roll-up counter grid doors lock down service counters and pass-through windows up to 20 feet wide and 10 feet high while keeping your products in view. The curtain is made from rods and aluminum plates set in a brick-like pattern, so air and light pass through but hands cannot reach in.
Every grid door is custom made to your opening and ships as a complete kit, ready to install.
Typical Price Range: Most roll-up counter grid doors cost about $560 to $6,551. Size has the biggest effect on price, followed by finish, locks and manual or motorized operation. Send your measurements for an exact quote.
Built To Protect Open Counters
Max Size
Up to 20' W x 10' H
Curtain
Steel rods and aluminum plates
Operation
Manual or motorized
Warranty
1-year limited
Features And Benefits
- Rolls up tight into a small coil above the opening, so it uses minimal space.
- See-through grid keeps merchandise on display after hours.
- Air and light pass through when the door is closed.
- Corrosion-resistant components and neutral colors that blend with most décor.
- Custom designed to fit your opening.
Best For
- Retail counters
- Food service facilities
- Schools and hospitals
- Pharmacy windows
- Manufacturing facilities
Good To Know: Every grid door ships as a kit with the parts needed for installation, except wall fasteners. We recommend installation by an experienced, authorized person.
Grid, Solid Or Vented Counter Door?
All three PAYLON counter doors roll up above the opening and lock the counter after hours. The curtain decides what people can see and how much air gets through.
| Door | Visibility | Airflow |
|---|---|---|
| Grid counter door | Full view | Air and light pass through |
| Solid counter door | No view | None |
| Vented counter door | Limited view | Small holes let air through |
Tip: If people should still see your products after closing, choose the grid door. If the area behind the counter should be hidden, choose a solid door.
Common Questions
What is a roll-up counter grid door?
A roll-up counter grid door is a security door that rolls up into a coil above a counter opening. When it’s down, it locks the counter but still lets you see through. At PAYLON, our grid doors are made from high-strength aluminum shutter slats with hole punches allowing for maximum visibility.
What are the typical prices for roll-up counter doors?
The roll-up counter doors of PAYLON ranges from about $560 to $6,551. The price is mostly determined by the size of the opening. Finish, locks, and motor also influence the price. Send us your preferred width and height we will give you an exact quote.
Are counter grid doors worth it?
 Yes, grid doors are worth it when you want to stop theft but keep your products on display. With a grid door, customers can still see what you’re selling even when the counter is closed. If you need the area completely hidden, we recommend a [solid counter door] instead. (Keep the existing link here.)
Should a counter grid door be mounted inside or outside?
Counter grid doors are usually mounted inside the counter opening, where the coil and lock are best protected. You can also mount the door on the wall over the opening or fit it between the jambs. Tell us which option you prefer when you request a quote.
How do I measure for a counter grid door?
Measure the width and height of the opening, then the space above the opening, including the ones on each side of the coil and guides. Explore our guide on measuring a roll-up counter door if you want to know more about each measurement.
Can a roll-up counter grid door be motorized?
Yes. Our counter grid doors come with manual or motorized operation. The manual option is a good fit if you have a small counter and open it once or twice a day. The motorized option is the better choice for wide or heavy doors.
